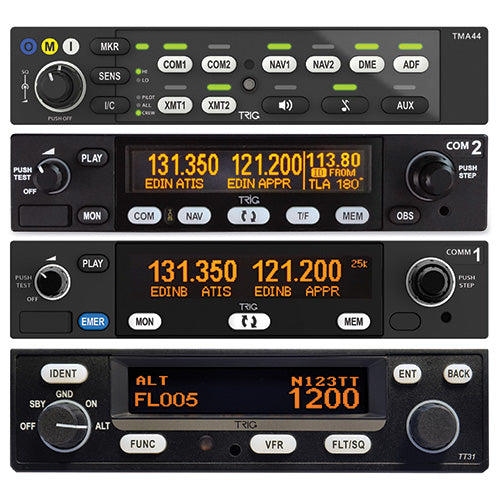

TRIG TMA44, TX56A, TY96A, TT31 | Complete Stack System Bundle

Trig's complete stack system provides the easiest solution to upgrading out-dated avionics. A slimline design saves valuable space while still providing practical features. The Complete Stack System includes all necessary trays and installation kits.

The Complete Stack consists of the following components:

• TMA44 - Standard Audio Panel
• TX56A - Nav/Com Unit
• TY96A - VHF Transceiver Radio
• TT31 - Mode S Transponder

TMA44

• Mono – audio inputs for phone / music
• Smooth fade feature
• Simple user interface – easy to use
• Dedicated buttons for ADF and DME functions
• Marker beacon receiver – with indicators
• Supports 2-4 seats

TX56A

• Slimline – only 1.3 inches high
• Bright, clear display / simple user interface
• Unique ‘Push Step’ for faster tuning
• Dual Watch – monitor two com or two nav frequencies at the same time
• Stereo music / two place intercom
• ‘Say Again’ feature – allows playback of last transmission
• USB port on facia – upload over 200 com and 200 nav frequencies and identifiers in database (CSV file)
• VOR/ILS receiver – monitor a 2nd VOR, improve navigational accuracy
• Built in VOR/LOC converter
• Built in digital CDI
• Built in 40 channel glideslope receiver
• Highly efficient – no cooling fans or external cooling required

TY96A

• 760 channel
• 11 V – 33 V, 10 watt
• Slimline panel mount – only 1.3 inches high
• Bright, clear display with simple user interface
• Unique ‘Push Step’ for faster tuning 25 kHz to 50 kHz
• Dual Watch for monitoring two frequencies at the same time
• ETSO and TSO approved
• Stereo music and two place intercom
• ‘Say Again’ feature allows playback of last transmission
• Emergency button
• Configurable airfield database holds over 200 frequencies and identifiers
• USB port on facia provides convenient uploading of frequency databases (CSV file)
• Highly efficient – no cooling fans or external cooling required
• GPS / EFIS compatibility (includes SL40 protocol and Garmin GTR255)

TT31

• Certified for IFR / VFR flight – meets TSO-C166b
• Improved retrofit performance – ‘plug and play’ Mode S for KT76A, KT76C and KT78A
• ADS-B Out capable – using TN70/TN72 or popular GNS and GTN WAAS navigators
• Free FAA ADS-B STC and AML list for 650 aircraft types
• Amongst the lowest power consumption in class
• Backlit LED display
• No cavity tube – no warm up time required (no need for dropper resistors)
• Software provides the widest compatibility with third party avionics
